|FPC Positive Reflective STN Dot Matrix LCD Module With Backlight
dot matrix lcd module custom
cheap price dot matrix lcd display

FPC Positive Reflective STN Dot Matrix LCD Module With Backlight

Basic Info.


Display Type Transflective AA 19x53.64mm
View Angle 6 O′clock VDD 6.5V
Duty 1/32 Bias 1/6
Connector FPC Operating Temp. -30°~80°C
Environmental Protection RoHS HSF Interface None
Control IC ST7920 Transport Package Carton/Pallet
Trademark Jinhua Origin China
HS Code 8531200000 Production Capacity 3000000 pcs/month
MOQ 1000 pcs, negotiable

FPC Positive Reflective STN Dot Matrix LCD Module With Backlight

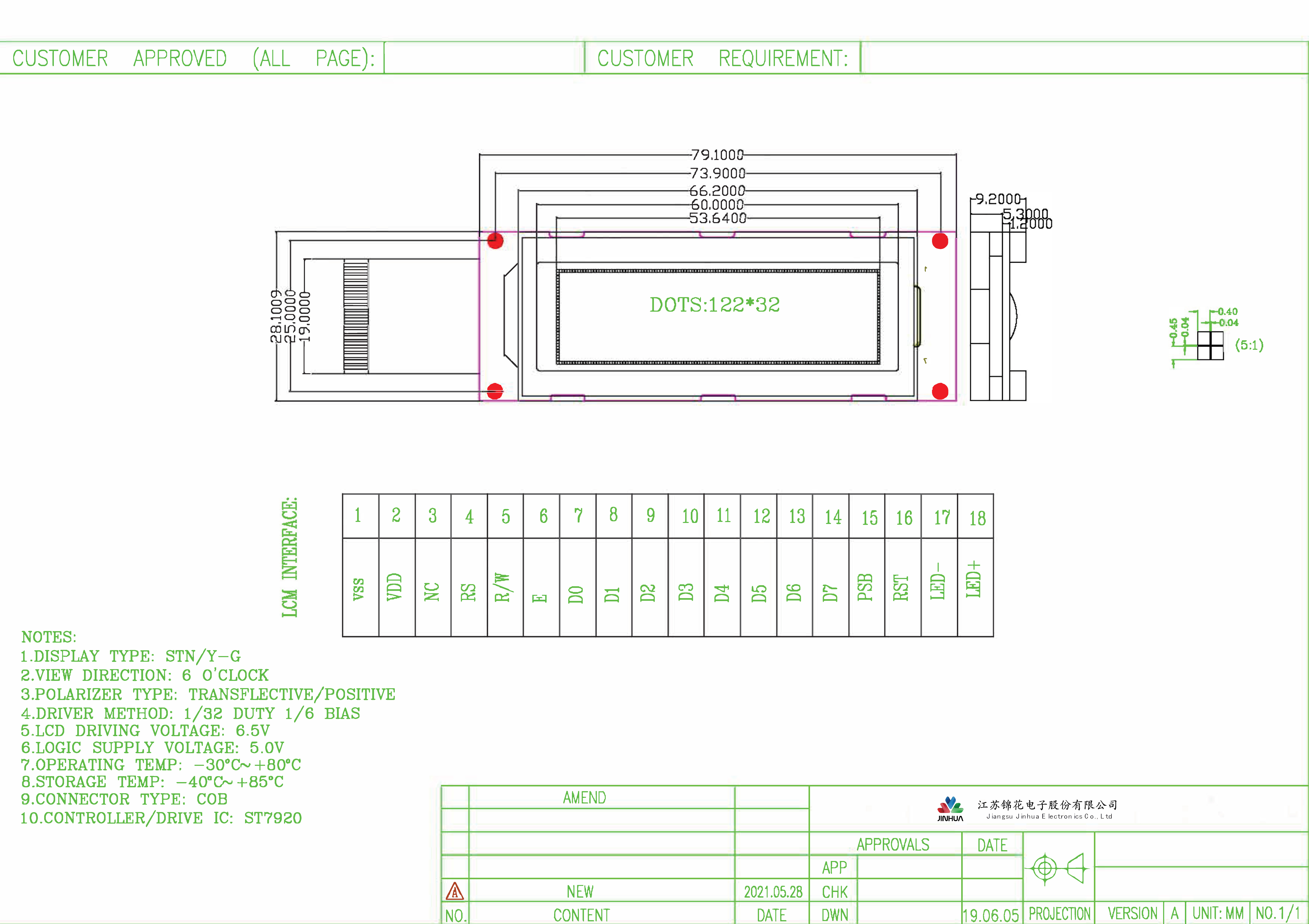

It is a STN dot matrix LCD module with FPC connector and backlight. The dot number is 122*32 which means there are 122 dots in rows and 32 dots in line. Apart from that, we also offer 128x64 dot matrix LCD, 7 segment lcd display. It could able to display digit or number and simple graphic dynamically by giving a certain programme.

The STN dot matrix LCD dot display only requires a 6.5v to drive it along with the backlight. And it's size is custom avalible according to clients' demands.



Dot Matrix LCD Display Module
Product Parameters
LCD Type STN LCD Display
Display Type Transflective
Display Mode Positive
View Angle 6 o'clock
AA 19x53.64mm
Driving Condition VDD 6.5V
Duty 1/32
Bias 1/6
Connetor Pin
Display Technology COB
Control IC ST7920
Interface None
Operating Temperature -30-80°C, custom
Requirements On Environmental Protection ROHS HSF

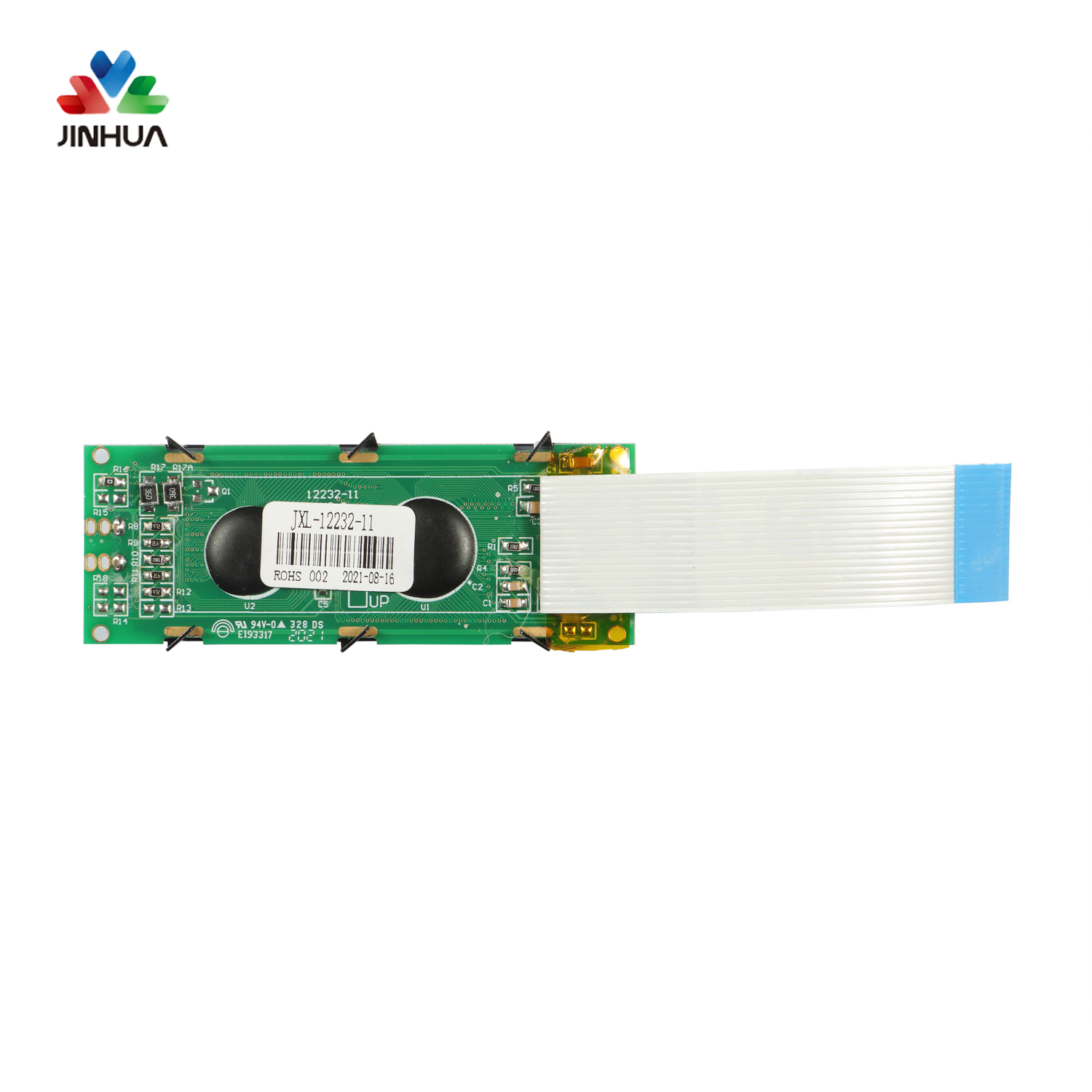

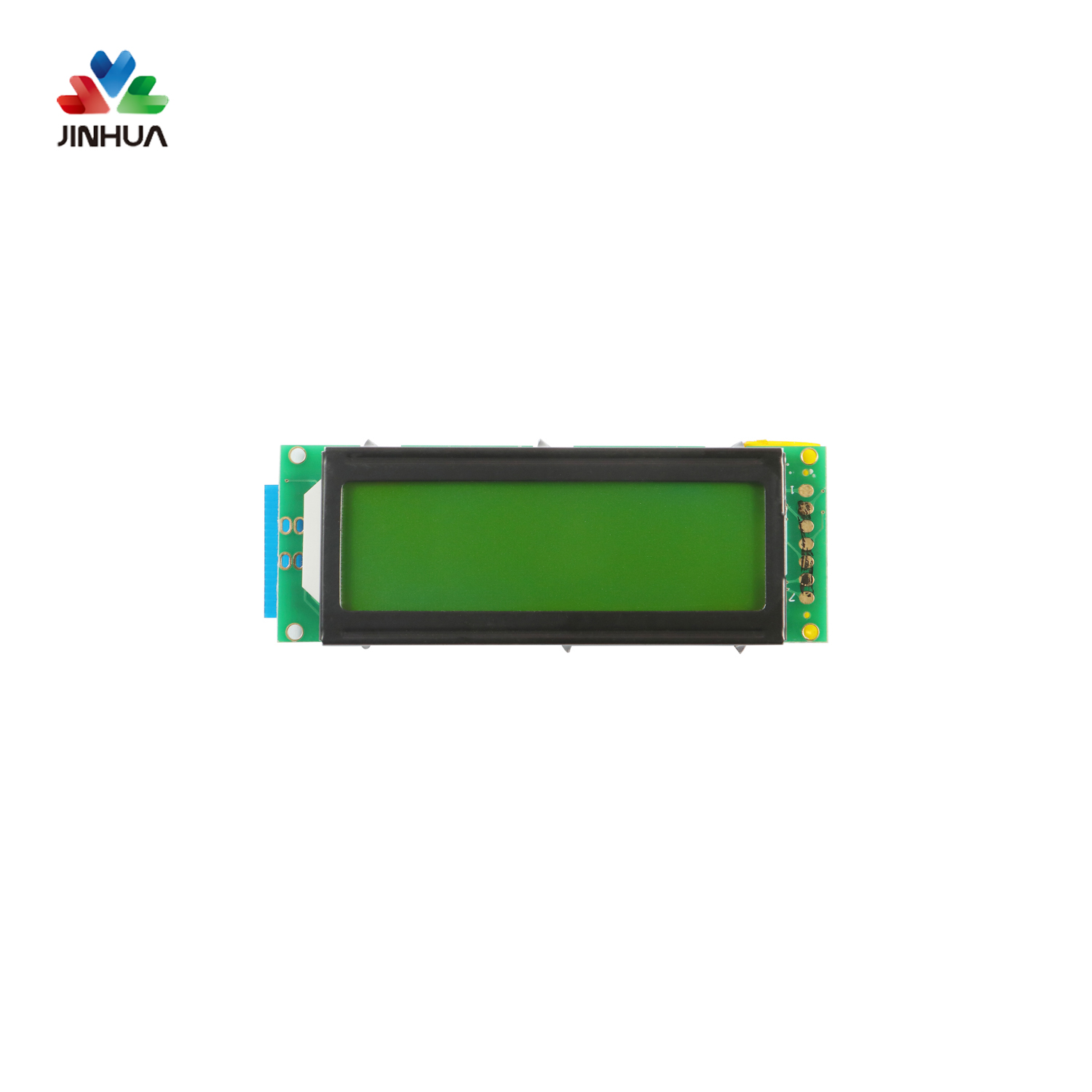

Detailed Picture

Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application

Dot Matrix LCD Display Module's display effect is oftenly determined by the dot number. Generally speaking, the more dots the LCD have, the better display effect it is. With high resolution dot matrix LCD display module, its effect could even comparing with some TFT displays. This make the dot matrix LCD module has larger range of application in home appliance, industrial instrument, medical equipment, consumer electronics, etc.



Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
