Pins Positive Reflective TN Segment LCD Panel China Manufacturer

Basic Info.


Display Type Reflective AA 20.4x46.2mm
View Angle 6 O′clock VOP 3.3V
Duty 1/4 Bias 1/3
Connector Pin Operating Temp. -20°~70°C
Environmental Protection RoHS HSF Interface SPI
Control IC None Transport Package Carton/Pallet
Trademark Jinhua Origin China
HS Code 8531200000 Production Capacity 3000000 pcs/month
MOQ 1000 pcs, negotiable

Pins Positive Reflective TN Segment LCD Panel China Manufacturer



It is a TN segment LCD panel product. Normally for this kind of LCD, the price wouldn't be high and only need a little power consumption.

There are several types of bias for TN segment LCD panel bias for instance 1/3, 1/4, 1/32, 1/33 or custom. The drive bias, which is also known as voltage margin, it implies the number of voltage levels used to drive the LCD. Generally, bias is defined as 1/(number of voltage levels-1). The higher number of voltage levels are required when the more segments driven by each driver.



TN Segment LCD Panel
Product Parameters
LCD Type TN
Display Type Relflective
Display Mode Positive
View Angle 6 o'clock
AA 20.4x46.5mm
Driving Condition VOP 3V
Duty 1/4
Bias 1/3
Connetor Pin
Display Technology COB
Control IC None
Interface None
Operating Temperature -20-70°C, custom
Requirements On Environmental Protection ROHS HSF

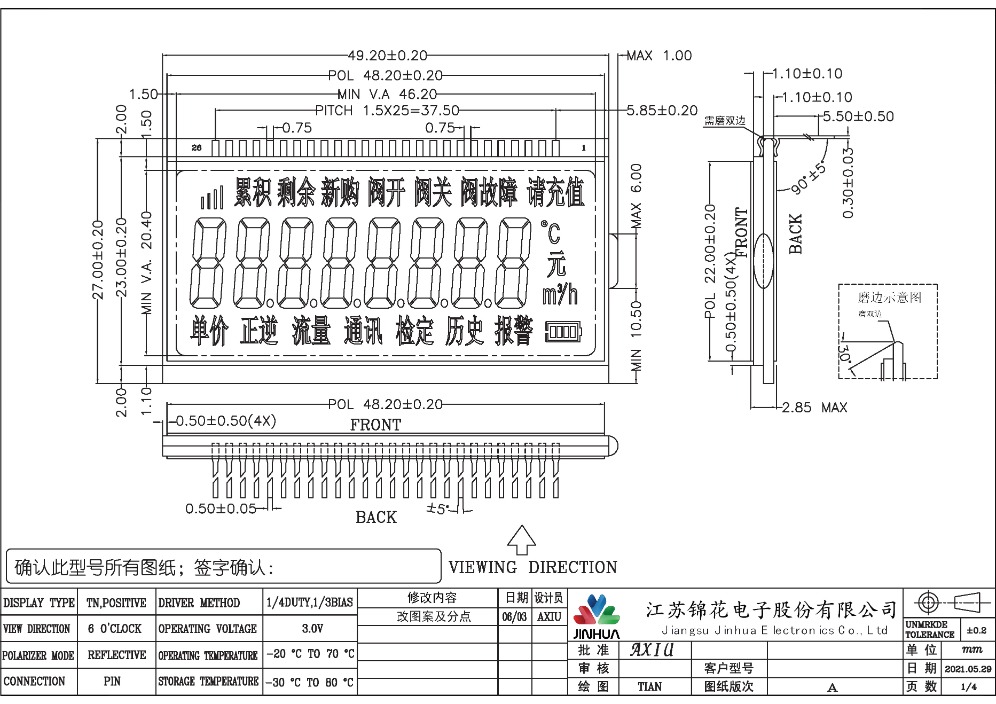

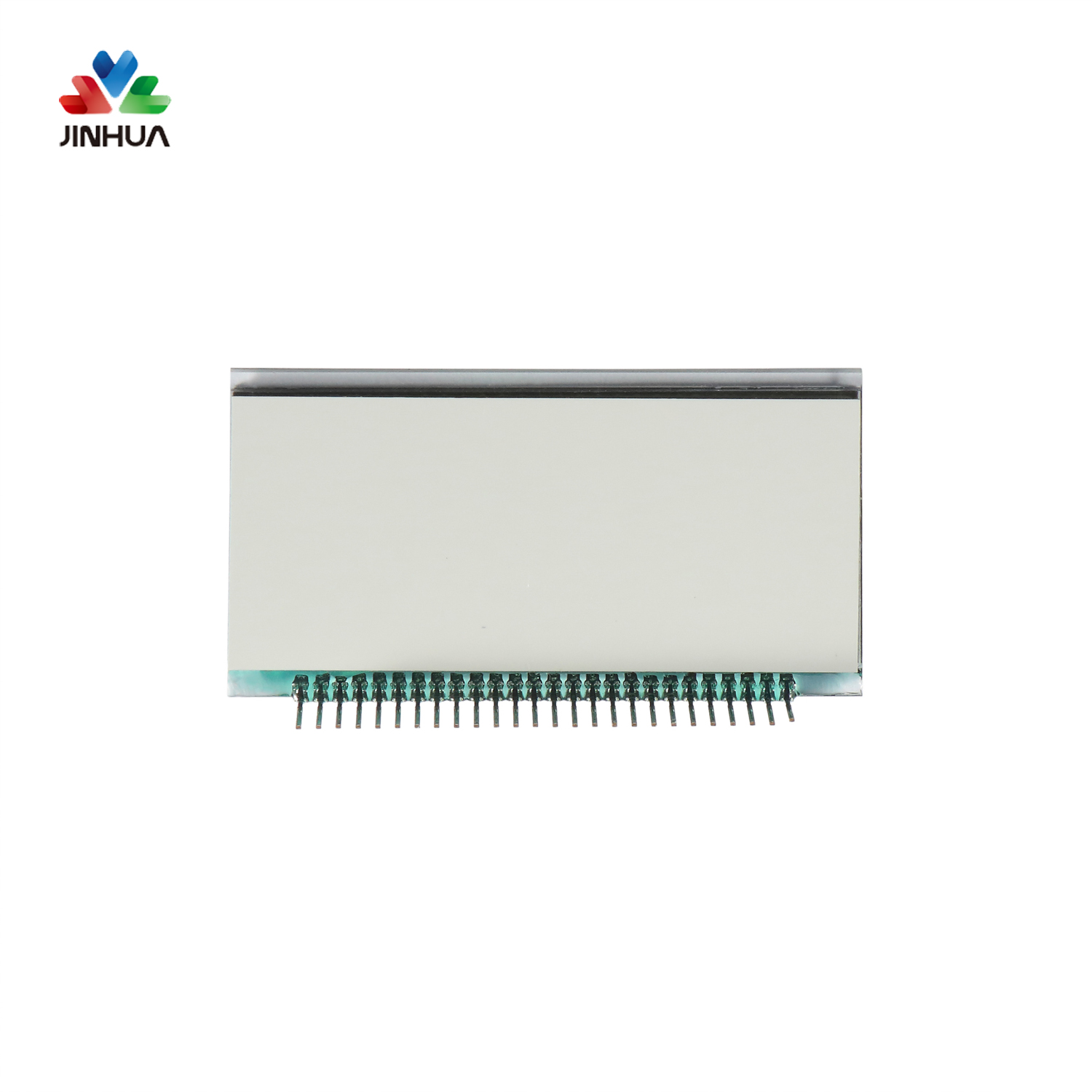

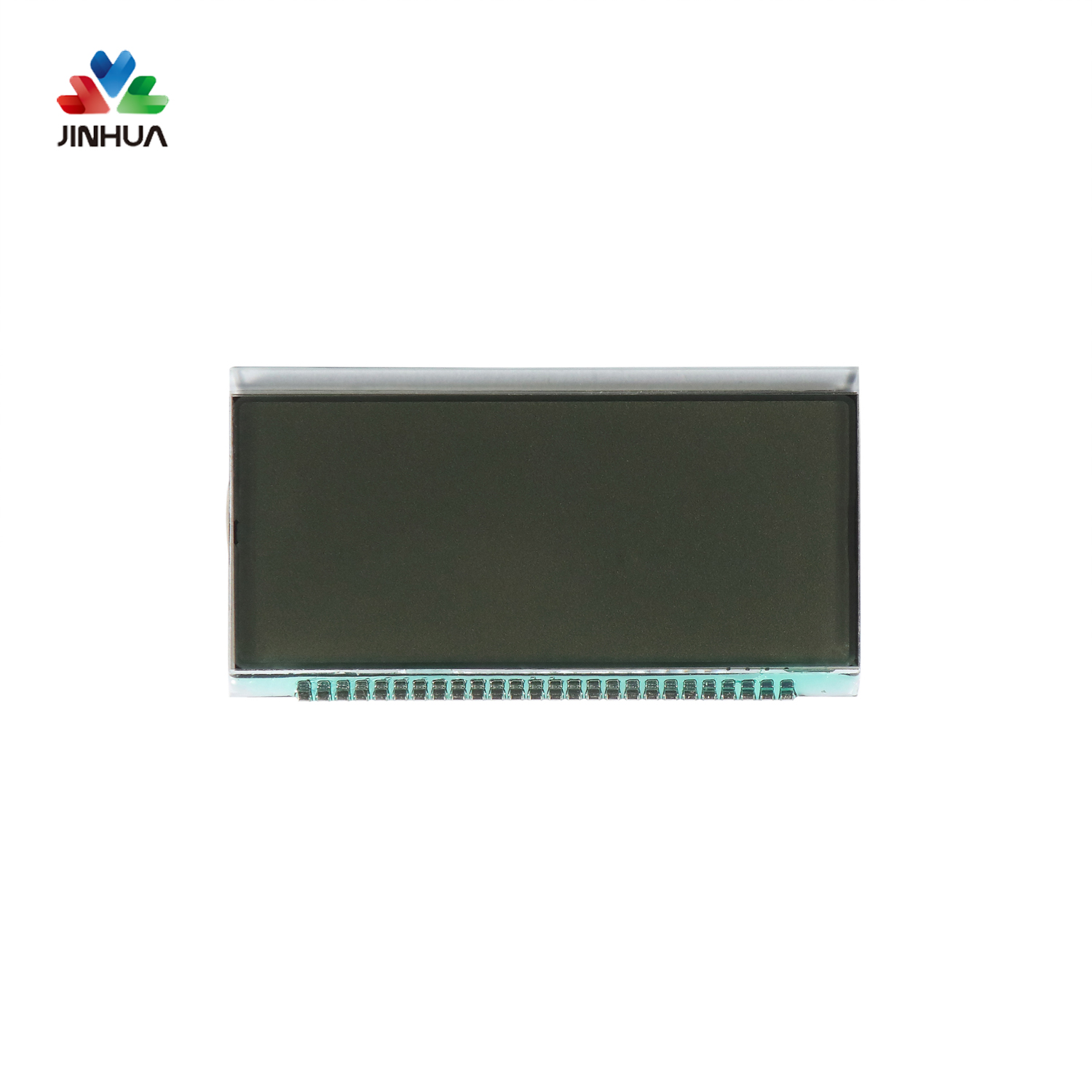

Detailed Picture

Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application

TN segment LCD panel is extensively used in both outdoors and indoors application such as all kind of meters, E-vehicle, scooter, gardening equipment, fuel dispenser, home appliance, medical equipment, electronic calculator, wearable eletronics, etc.



Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
