|Pins Positive Transflective display TN Segment LCD Panel for Metering Display
tn segment lcd panel for sale
china tn segment lcd panel supplier

Pins Positive Transflective display TN Segment LCD Panel for Metering Display

Basic Info.


Display Type Reflective AA 16.5x53.2 mm
View Angle 6 O′clock VOP 3.6V
Duty 1/4 Bias 1/3
Connector Pin Operating Temp. -20°~70°C
Environmental Protection RoHS HSF Interface SPI
Control IC None Transport Package Carton/Pallet
Trademark Jinhua Origin China
HS Code 8531200000 Production Capacity 3000000 pcs/month
MOQ 1000 pcs, negotiable

Pins Positive Reflective TN Segment LCD Panel for Metering Display

For a TN segment LCD panel, generally there are two types of display mode, one is positive and the other is negative. For positive display, it means the digits or numbers and graphics are normally black and the backgroud is white. Inversely, for negative it means digits or numers and graphics are normally white and the background is black. Clients are able to choose different display mode according to the LCD's application.

Apart from white and black, there are also many other color choices for a TN segment LCD panel.



TN Segment LCD Display Module
Product Parameters
LCD Type TN
Display Type Reflective
Display Mode Positive
View Angle 6 o'clock
AA 16.5x53.2 mm
Driving Condition VOP 3.6V
Duty 1/4
Bias 1/3
Connetor Pin
Display Technology COB
Control IC None
Interface None
Operating Temperature -20-70°C, custom
Requirements On Environmental Protection ROHS HSF

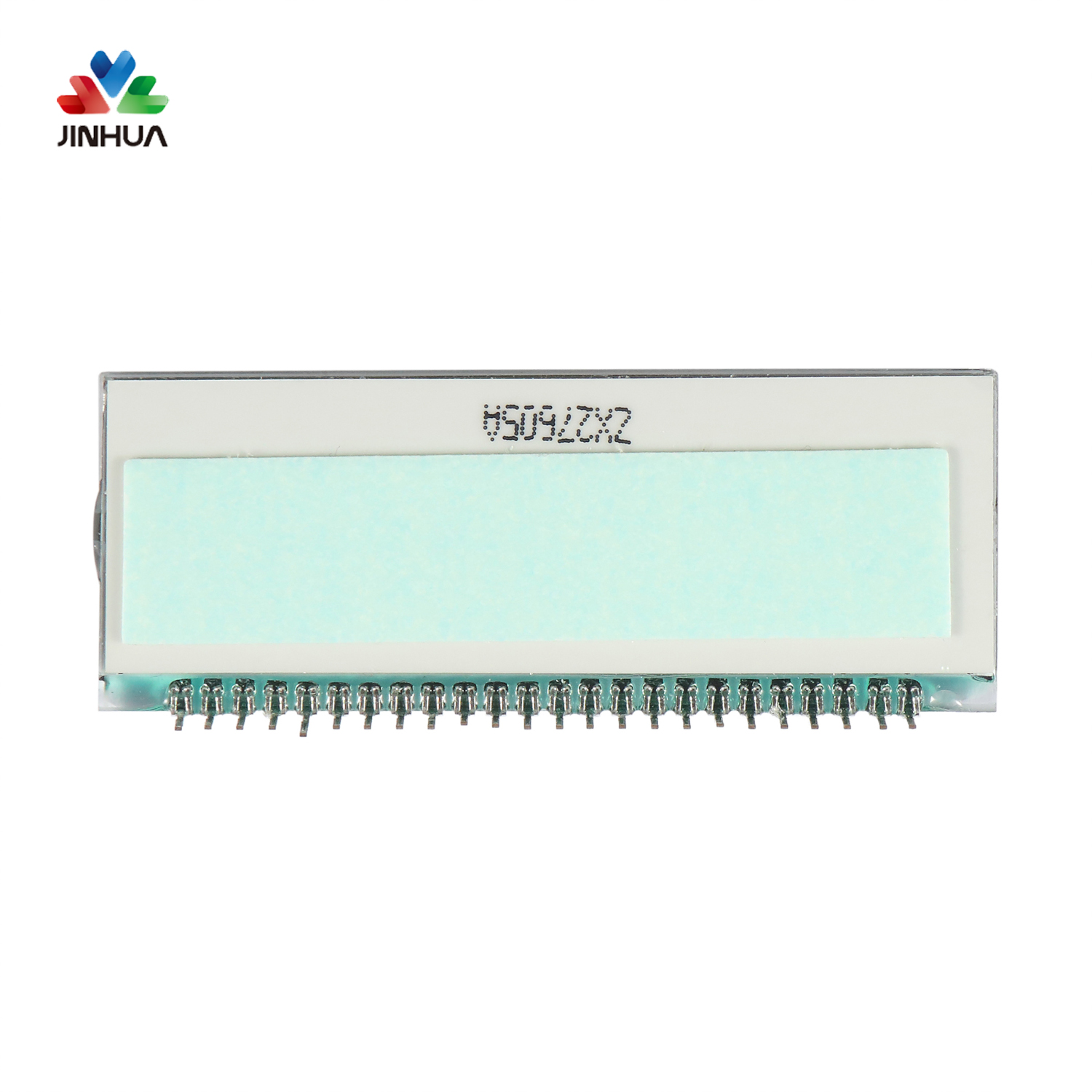

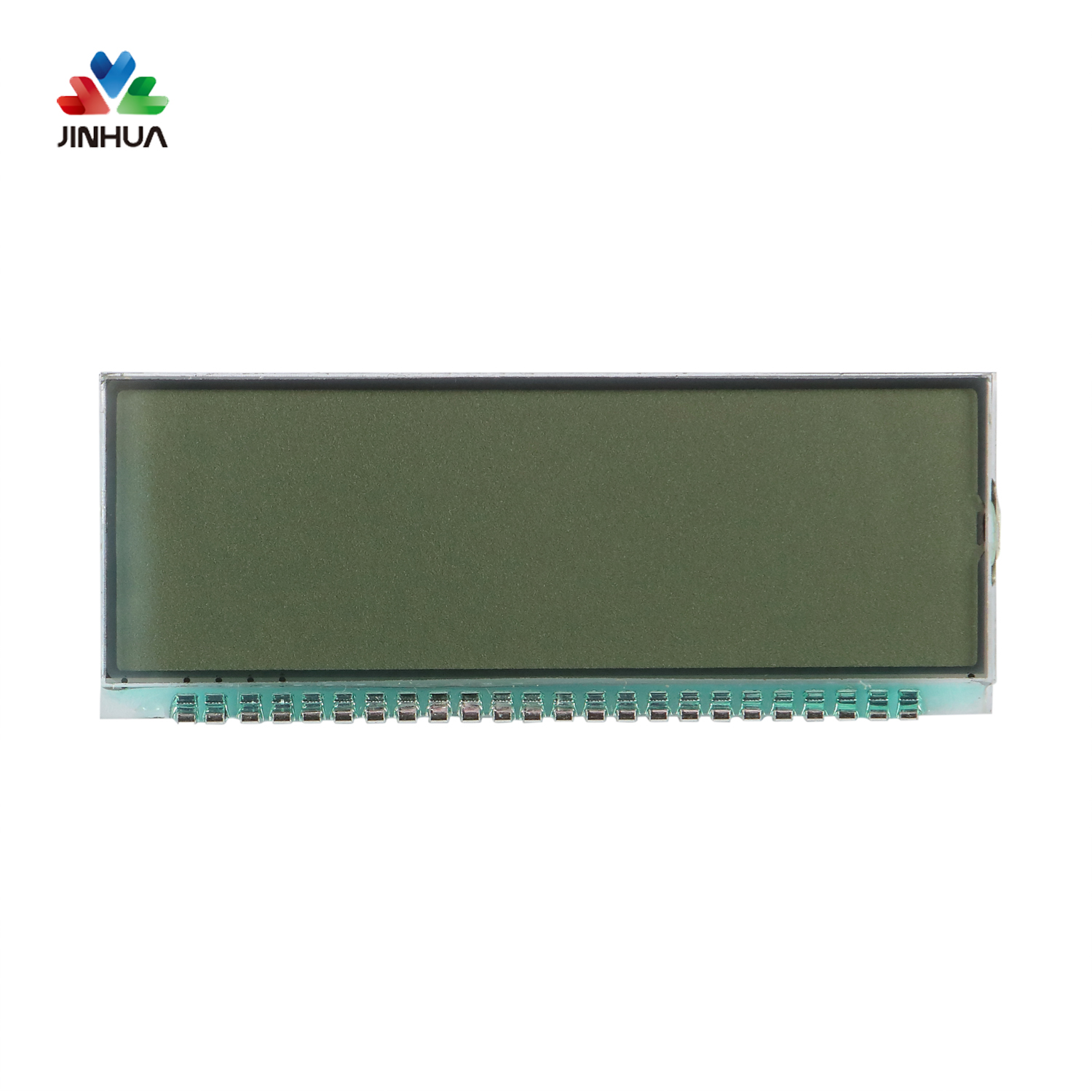

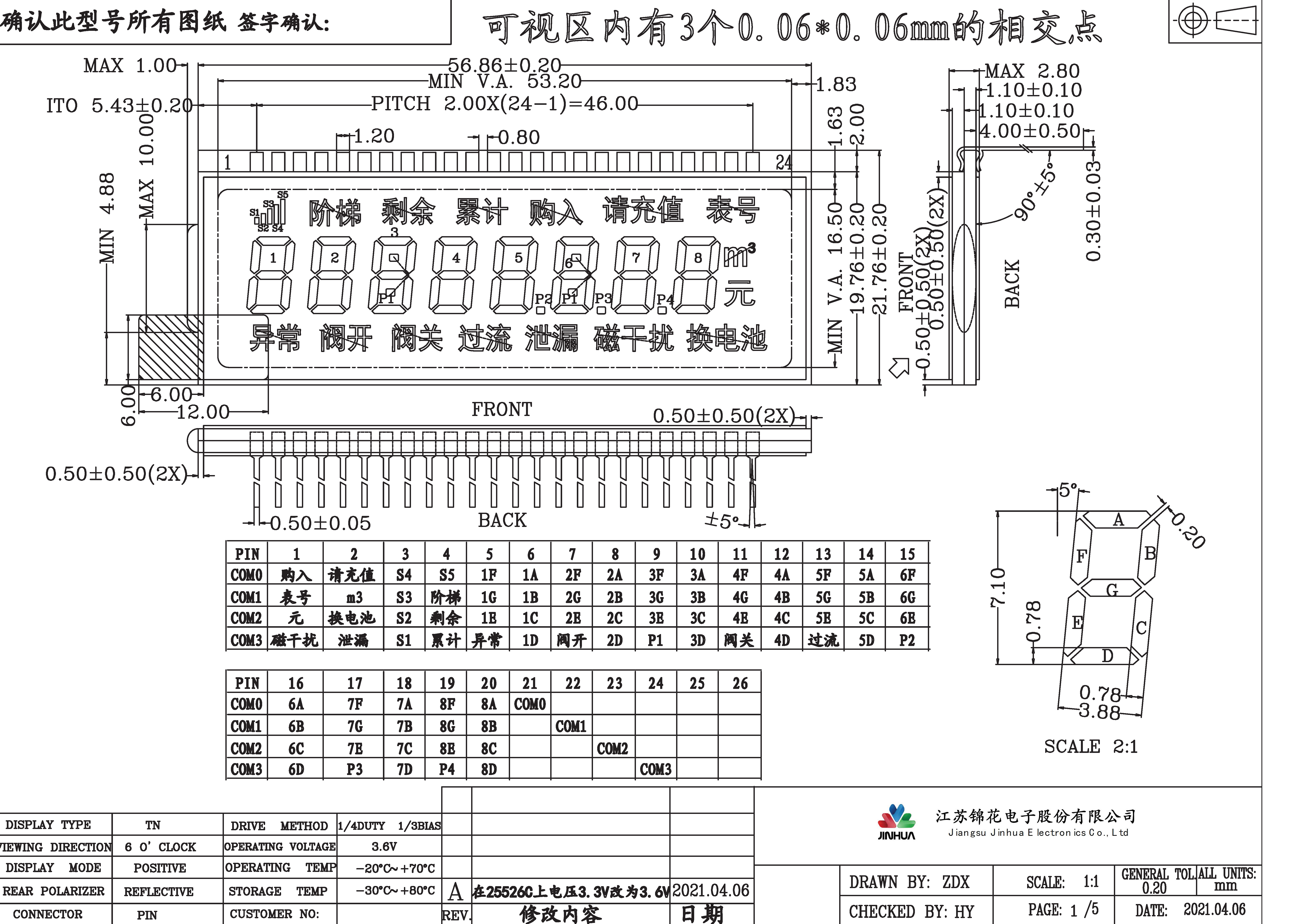

Detailed Picture

Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application

TN Segment LCD panel is especially used a lot in metering applicaiton for example gas meter, electricity meter, water meter for both residential and commerical use, and flow meter, pussure meter, temperature meter, density meter, concentration meter, humidity meter for industrial use. For over decades of development of segment LCD panel, it's very stable during working and also precise. That's why many clients turns to segment LCD panel when they have the requirement of digit and number display.



Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
