|FPC Negative Transmissive FSTN COG Dot Matrix LCD Screen with IC
dot matrix lcd display cheap price
custom lcd dot matrix screen cheap price

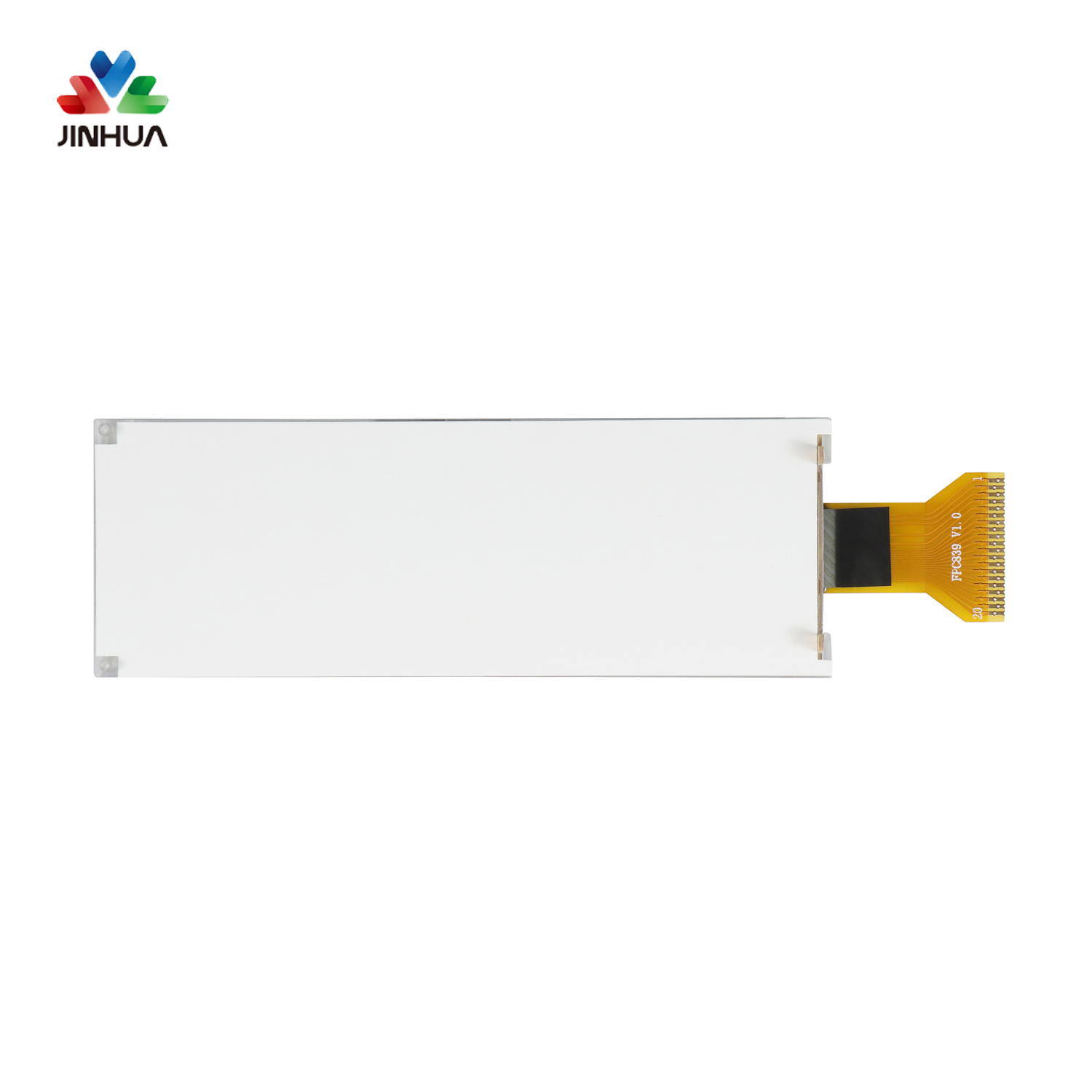

FPC Negative Transmissive FSTN COG Dot Matrix LCD Screen with IC

Basic Info.


Display Type Transmissive AA 20x70mm
View Angle 12 O′clock VDD 3.3V
Duty 1/32 Bias 1/6
Connector FPC Operating Temp. -20°~70°C
Environmental Protection RoHS HSF Interface SPI
Control IC S77539 Transport Package Carton/Pallet
Trademark Jinhua Origin China
HS Code 8531200000 Production Capacity 3000000 pcs/month
MOQ 1000 pcs, negotiable

FPC Negative Transmissive FSTN COG Dot Matrix LCD Screen with IC

It is a FSTN dot matrix LCD screen product with 128x32 dots, normally to drive a dot matrix LCD it's always need a certain IC. If there is no specific IC required from the client, Jinhua company will choose an appropriate one accordingly. The more the dots are, the stronger the IC will be required.



Dot Matrix LCD Display Module
Product Parameters
LCD Type DFSTN
Display Type Transmissive
Display Mode Negative
Dot Number 128x32
View Angle 12 o'clock
AA 20x70mm
Driving Condition VDD 3.3V
Duty 1/32
Bias 1/6
Connetor Pin
Display Technology COG
Control IC ST7539
Interface SPI
Operating Temperature -20-70°C, custom
Requirements On Environmental Protection ROHS HSF

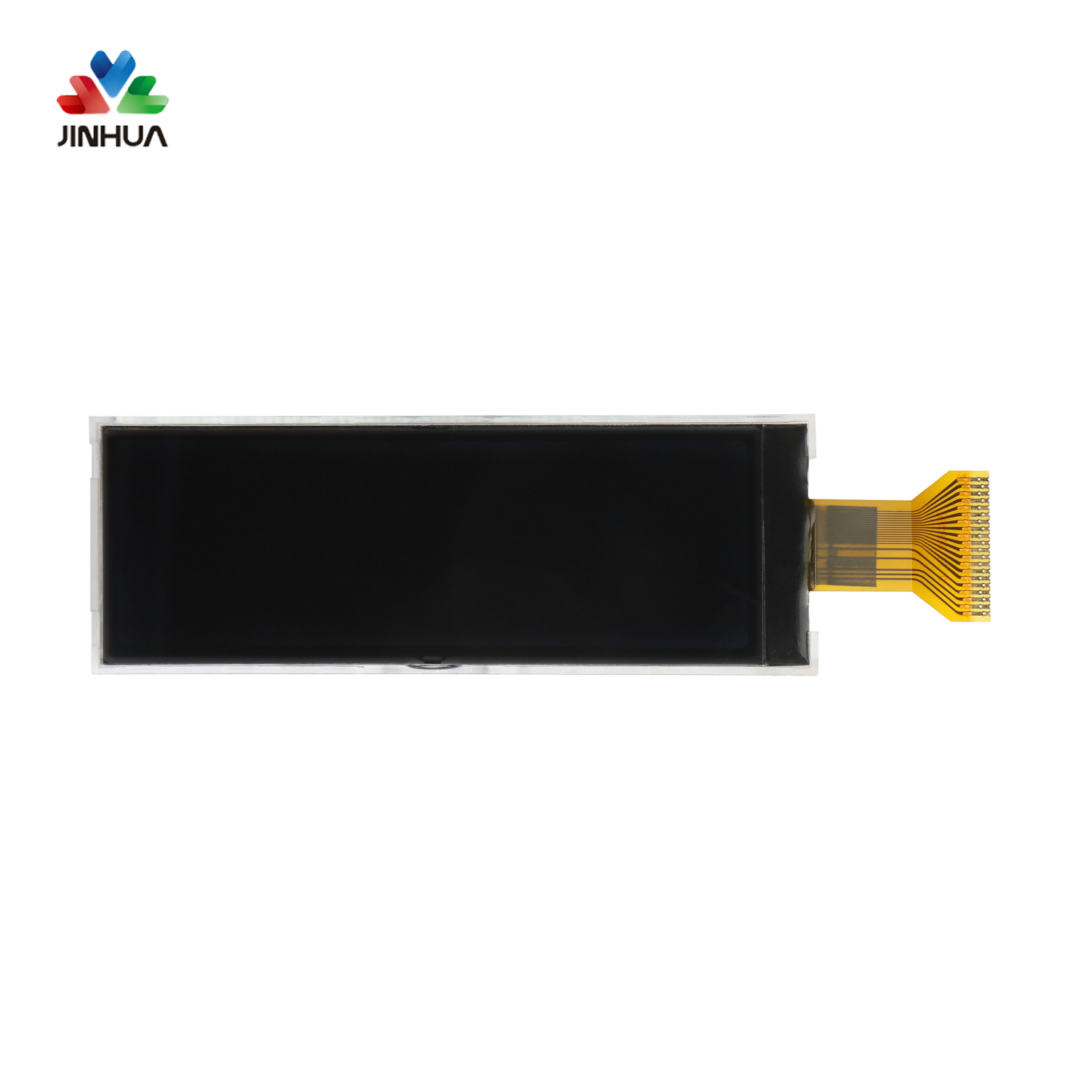

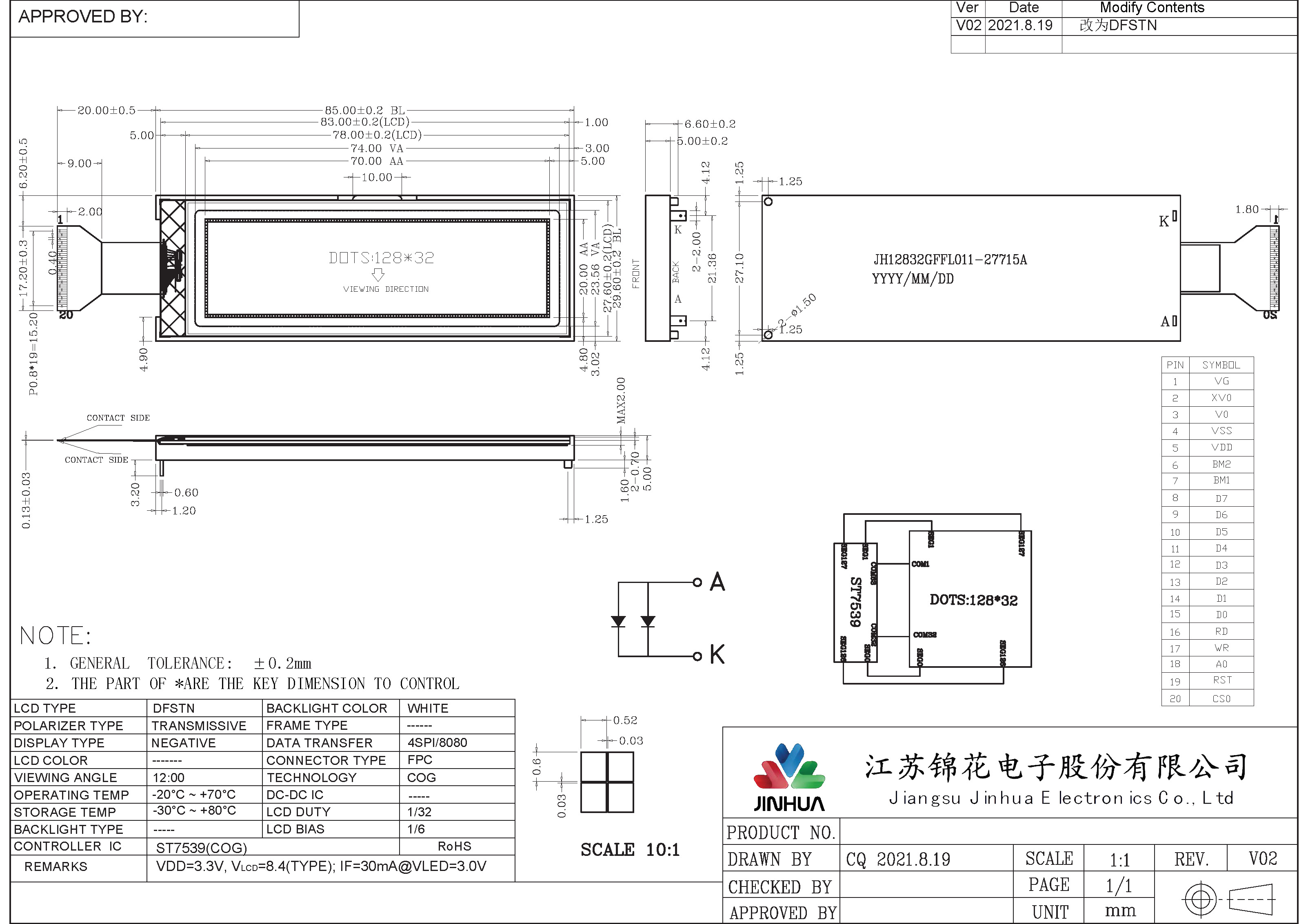

Detailed Picture

Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application

Dot Matrix LCD Screen is available to be applied to some extremly enviroment such as -30° low temperature and 80° hight temperature. This increase the feasibility of LCD's application. With some specially treatment, the LCD screen is also able to be used in hostile environment such as rainy, snowy or exposure to be sun burnt.



Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
